BSTA 250

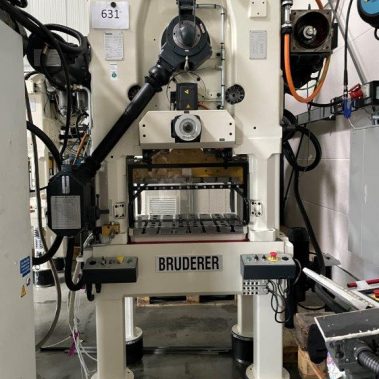

Automatic stamping press Bruderer BSTA 250-75B
Year of manufacture 2006
Press force max. 250 kN
Stroke rate min. 100 spm, max. 1500 spm
Mains voltage 3 x 400 V AC
Mains frequency 50 Hz
Main motor drive power 22 kW
Ram adjustment range 51 mm
Adjustment stroke 13; 16; 19; 25; 32; 38 mm
Clamping plate dimensions 740 x 530mm
Max. tool installation width 750 mm L-R

Tool clamping plate (bolster) split, movable

Machine dimensions:
Height 2715 mm
Length 1965 mm
Width 1107 mm
Weight approx. 4950 kg

BBV 190/85H roll feed on left-hand side:
Feed length: 0-85 mm
Strip width: 160 mm max.
Strip thickness: 4 mm max.
Feed length adjustment manually.

Used machine:
– Machine tested / partially overhauled (2026)
– Bruderer B-control system
– Air-conditioned control cabinet
– Dynamic ram adjustment
– Automatic ram adjustment
– Dynamic feed length display
– Press force monitoring
– Control panel mounted on support arm



We would be pleased to modify this automatic stamping machine to meet your specific production requirements, including automation and process monitoring systems. Please contact us to discuss your needs.
