BSTA 50UL

Automatic stamping press Bruderer BSTA 50UL
Year of manufacture 2000
Press force max. 500 kN
Stroke rate min. 100 spm, max. 1120 spm
Mains voltage 3 x 400 V AC
Mains frequency 50 Hz
Main motor drive power 28 kW
Ram adjustment range 64 mm
Adjustment stroke 16; 19; 25; 32; 38; 44; 51 mm
Clamping plate dimensions 940 x 650mm
Max. tool installation width 950 mm L-R
Machine Weight approx. 8150 kg

BBV 202/120 roll feed on right-hand side:
Feed length: 0-120 mm
Strip width: 203 mm max.
Strip thickness: 6 mm max.
Manual feed length adjustment

Used machine:
– Machine inspected / partially overhauled (2026)

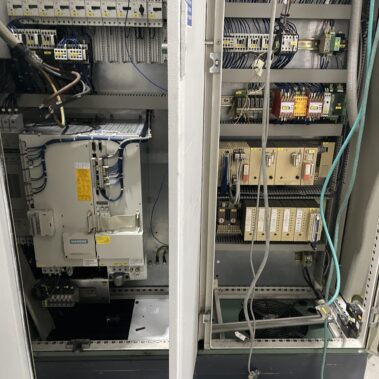

– Bruderer U-control system, Siemens PLC

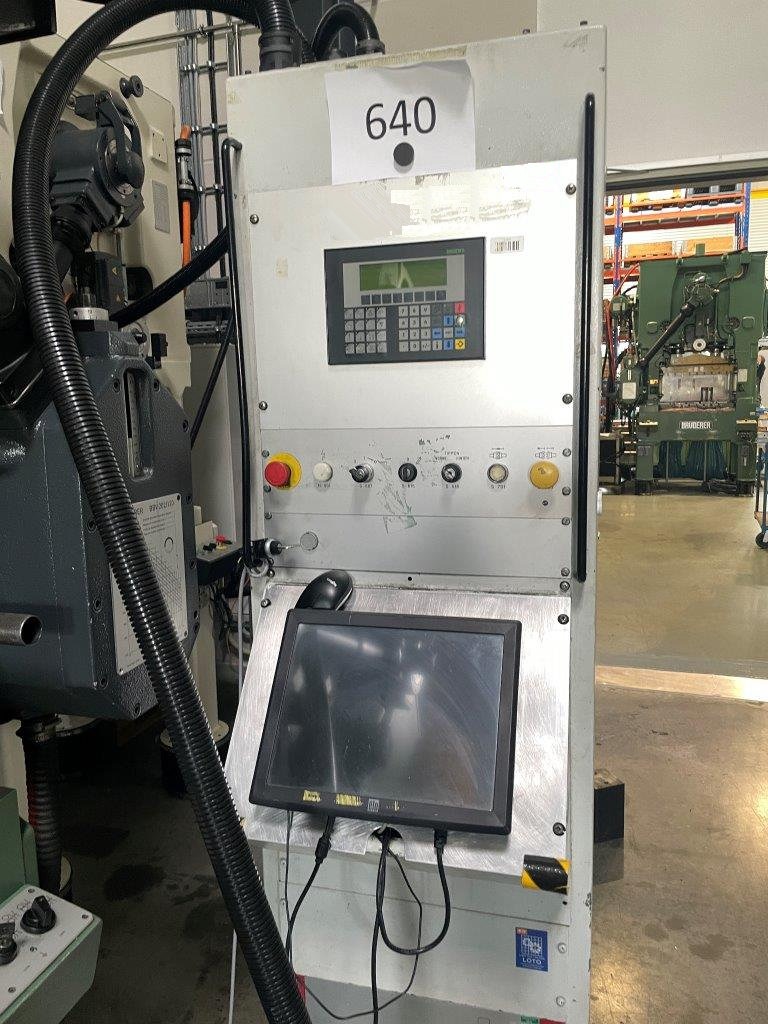

– Control console at rear of machine
– Electronic feed length display
– Unidor press force monitoring
– Unidor tool monitoring



We would be pleased to modify this automatic stamping machine to meet your specific production requirements, including automation and process monitoring systems. Please contact us to discuss your needs.
